Label guide
Learn about Helthjem labels. Here you can also find information about creating custom labels.
Overview
We recommend using the Label API for retrieving shipping labels. However, you can make custom labels with the custom labels guide below, all information needed to create a label is provided in the booking response. This guide will outline our basic label formats from our label API and also provide you with what you need to create your own.
We must confirm that labels are ok before sending. Please contact us at the integrations email.
NOTE! The response for Helthjem and Mypack Collect differs when it comes to transport information. Also, when a Mypack Collect is booked, there will also be information about the servicepoint (pick up point) in the response that also must be placed on the label
Technical Specifications
-
Barcode Format: All barcodes are in GS1-128 format.
-
Label dimensions: Standard large labels are 102mm x 192mm.
Mission codes
Postnord labels require an additional unique field called a mission code.
The mission code value is found at properties.missionCode object in Booking API response. The mission code contains a unicode separator special character 0X1D in the middle. Unicode characters are often not visible (depending on configuration), it must be excluded when you add the code into the barcode on all Postnord labels.
-
Initial string: 4215780468<0x1d>9013000355691719
-
Unicode character <0x1d> is placed after the first 10 characters.
-
Make sure that you exclude it before turning it to a bar code (GS1-128 format)
-
The result value should contain only 26 characters
Standard labels
The labels below are examples of standard outbound labels, retrieved from the label API using the shipmentID in the booking response.
Outbound labels

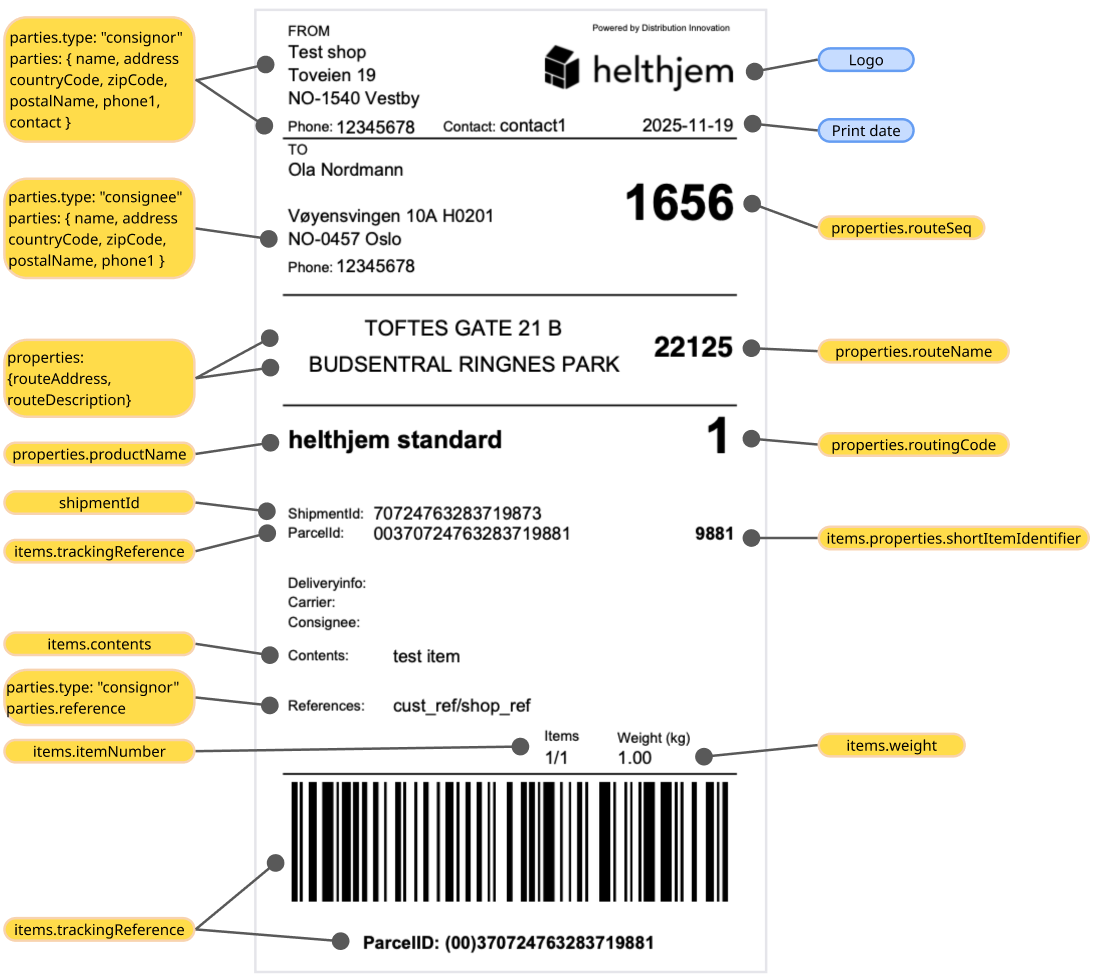

FreightProductId: 1 - Helthjem standard label
See the example below to understand where properties are mapped on this label type.
FreightProductId: 5 - “Helthjem ekspress” uses the same layout.
{
"shipmentId": "(401)70724763283719873",
"freightProductId": 1,
"parties": [
{
"type": "consignee",
"id": null,
"name": "Ola Nordmann",
"countryCode": "NO",
"postalName": "Oslo",
"zipCode": "0457",
"address": "Vøyensvingen 10A H0201",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "test@gmail.com",
"reference": "cust_ref",
"contact": "contact2",
"coaddress": null
},
{
"type": "consignor",
"id": null,
"name": "Test shop",
"countryCode": "NO",
"postalName": "Vestby",
"zipCode": "1540",
"address": "Toveien 19",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "",
"reference": "shop_ref",
"contact": "contact1",
"coaddress": null
}
],
"items": [
{
"itemId": null,
"itemNumber": 1,
"trackingReference": "(00)370724763283719881",
"returnCode": null,
"linkedParcelType": null,
"linkedTrackingReference": null,
"weight": 1000,
"volume": null,
"length": 12,
"height": 12,
"width": 12,
"contentValue": null,
"externalSupplierId": null,
"contents": "test item",
"properties": {
"shortItemIdentifier": "...9881"
},
"articles": [],
"externalOrderId": null
}
],
"properties": {
"areaId": "59",
"freightProductName": "helthjem",
"mainCarNumber": "14",
"pickupZipString": "0556 OSLO",
"productName": "helthjem standard",
"regionId": "189",
"routeAddress": "TOFTES GATE 21 B",
"routeDescription": "BUDSENTRAL RINGNES PARK",
"routeName": "22125",
"routeSeq": "1656",
"routeZipAndCity": null,
"routing": "14-0-x22125x1656",
"routingCode": "1",
"routingDescription": "RINGNES PARK",
"routingDetailed": "14 - RINGNES PARK",
"shopName": "Testbutikken",
"transportCompanyId": "1",
"transportNetId": "223"
},
"additionalServices": [],
"orderId": 204585942

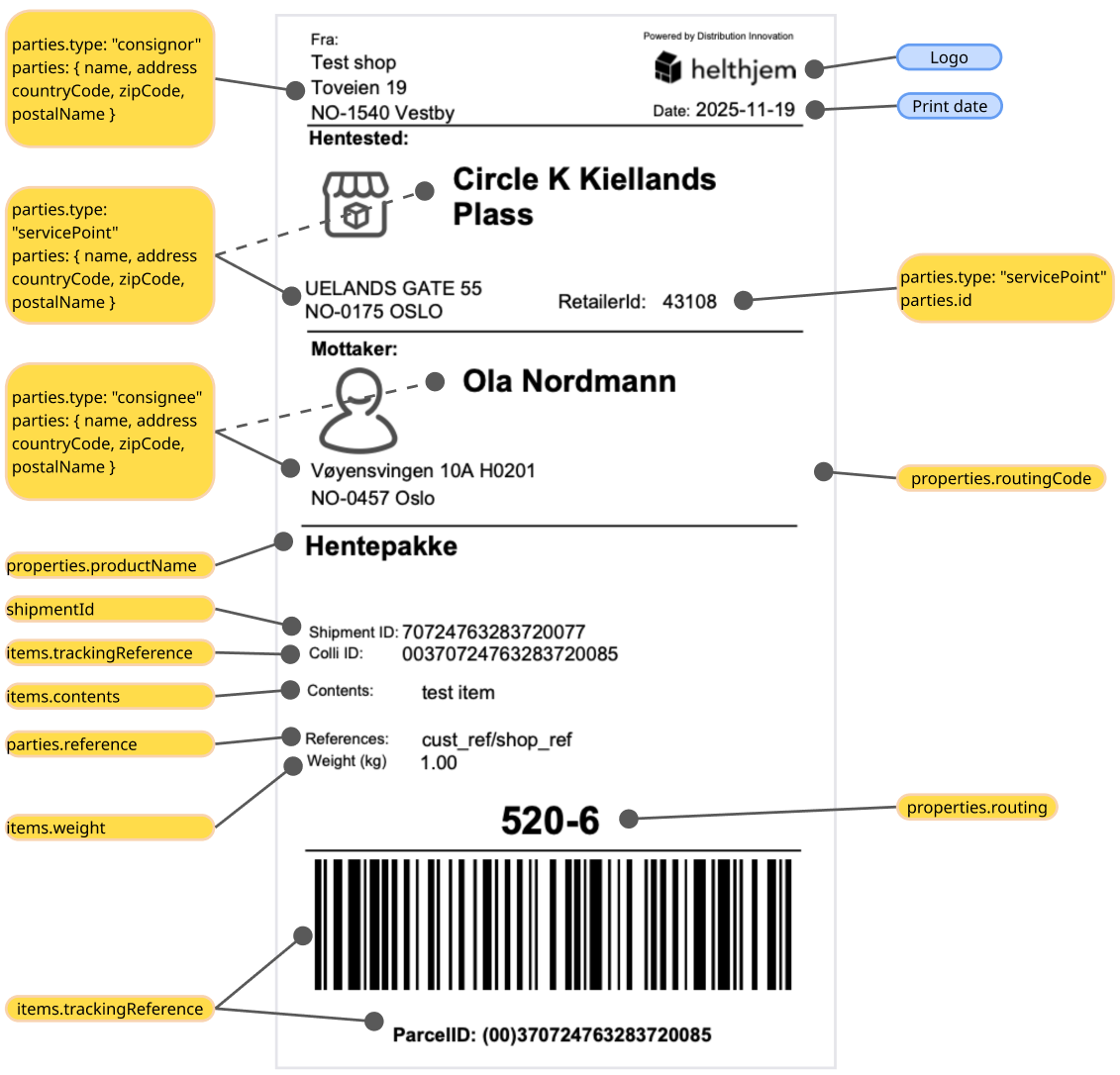

}FreightProductId: 55 - Helthjem Hentepakke label
See the example below to understand where properties are mapped on this label type.
{
"shipmentId": "(401)70724763283720077",
"freightProductId": 55,
"parties": [
{
"type": "consignee",
"id": null,
"name": "Ola Nordmann",
"countryCode": "NO",
"postalName": "Oslo",
"zipCode": "0457",
"address": "Vøyensvingen 10A H0201",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "test@gmail.com",
"reference": "cust_ref",
"contact": "contact2",
"coaddress": null
},
{
"type": "consignor",
"id": null,
"name": "Test shop",
"countryCode": "NO",
"postalName": "Vestby",
"zipCode": "1540",
"address": "Toveien 19",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "",
"reference": "shop_ref",
"contact": "contact1",
"coaddress": null
},
{
"type": "servicePoint",
"id": "43108",
"name": "Circle K Kiellands Plass",
"countryCode": "NO",
"postalName": "OSLO",
"zipCode": "0175",
"address": "UELANDS GATE 55",
"detailedAddress": null,
"phone1": null,
"phone2": null,
"email": null,
"reference": null,
"contact": null,
"coaddress": null
}
],
"items": [
{
"itemId": null,
"itemNumber": 1,
"trackingReference": "(00)370724763283720085",
"returnCode": null,
"linkedParcelType": null,
"linkedTrackingReference": null,
"weight": 1000,
"volume": null,
"length": 12,
"height": 12,
"width": 12,
"contentValue": null,
"externalSupplierId": null,
"contents": "test item",
"properties": {
"shortItemIdentifier": "...0085"
},
"articles": [],
"externalOrderId": null
}
],
"properties": {
"areaId": null,
"deliveryPointCarId": "10507",
"distributionDate": "20251120",
"freightProductName": "Helthjem Hentepakke",
"mainCarNumber": "520",
"pickupZipString": "",
"productName": "Hentepakke",
"regionId": null,
"retailerId": "43108",
"routeAddress": "UELANDSGT 55",
"routeDescription": null,
"routeName": "",
"routeSeq": "",
"routeZipAndCity": null,
"routing": "520-6",
"routingDescription": " ",
"routingDetailed": "520",
"shopName": "Testbutikken",
"transportNetId": "270"
},
"additionalServices": [],
"orderId": 204586033
}FreightProductId: 3 - Hent i butikk (Postnord) label
See the example below to understand where properties are mapped on this label type.
This freight product contains a mission code.
{
"shipmentId": "(401)70724763283720138",
"freightProductId": 3,
"parties": [
{
"type": "consignee",
"id": "1",
"name": "Ola Nordmann",
"countryCode": "NO",
"postalName": "Oslo",
"zipCode": "0457",
"address": "Vøyensvingen 10A H0201",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "test@gmail.com",
"reference": "cust_ref",
"contact": "contact2",
"coaddress": null
},
{
"type": "consignor",
"id": "3556917",
"name": "Test shop",
"countryCode": "NO",
"postalName": "Vestby",
"zipCode": "1540",
"address": "Toveien 19",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "",
"reference": "shop_ref",
"contact": "contact1",
"coaddress": null
},
{
"type": "servicePoint",
"id": "6381776",
"name": "Rema1000 Ila",
"countryCode": "NO",
"postalName": "OSLO",
"zipCode": "0171",
"address": "Waldemar Thranes Gate 25",
"detailedAddress": null,
"phone1": null,
"phone2": null,
"email": null,
"reference": null,
"contact": null,
"coaddress": null
}
],
"items": [
{
"itemId": null,
"itemNumber": 1,
"trackingReference": "(00)370724763283720146",
"returnCode": null,
"linkedParcelType": null,
"linkedTrackingReference": null,
"weight": 1000,
"volume": null,
"length": 12,
"height": 12,
"width": 12,
"contentValue": null,
"externalSupplierId": null,
"contents": "test item",
"properties": {},
"articles": [],
"externalOrderId": null
}
],
"properties": {
"customerNumber": "3556917",
"freightProductName": "Hent i butikk",
"issuerNumber": "13",
"missionCode":"4215780457 9013000355691719",
"productCode": "19",
"productName": "MyPack Collect",
"routingCode": "ALF",
"shopName": "Testbutikken"
},
"additionalServices": [],
"orderId": 204586134
}Return labels

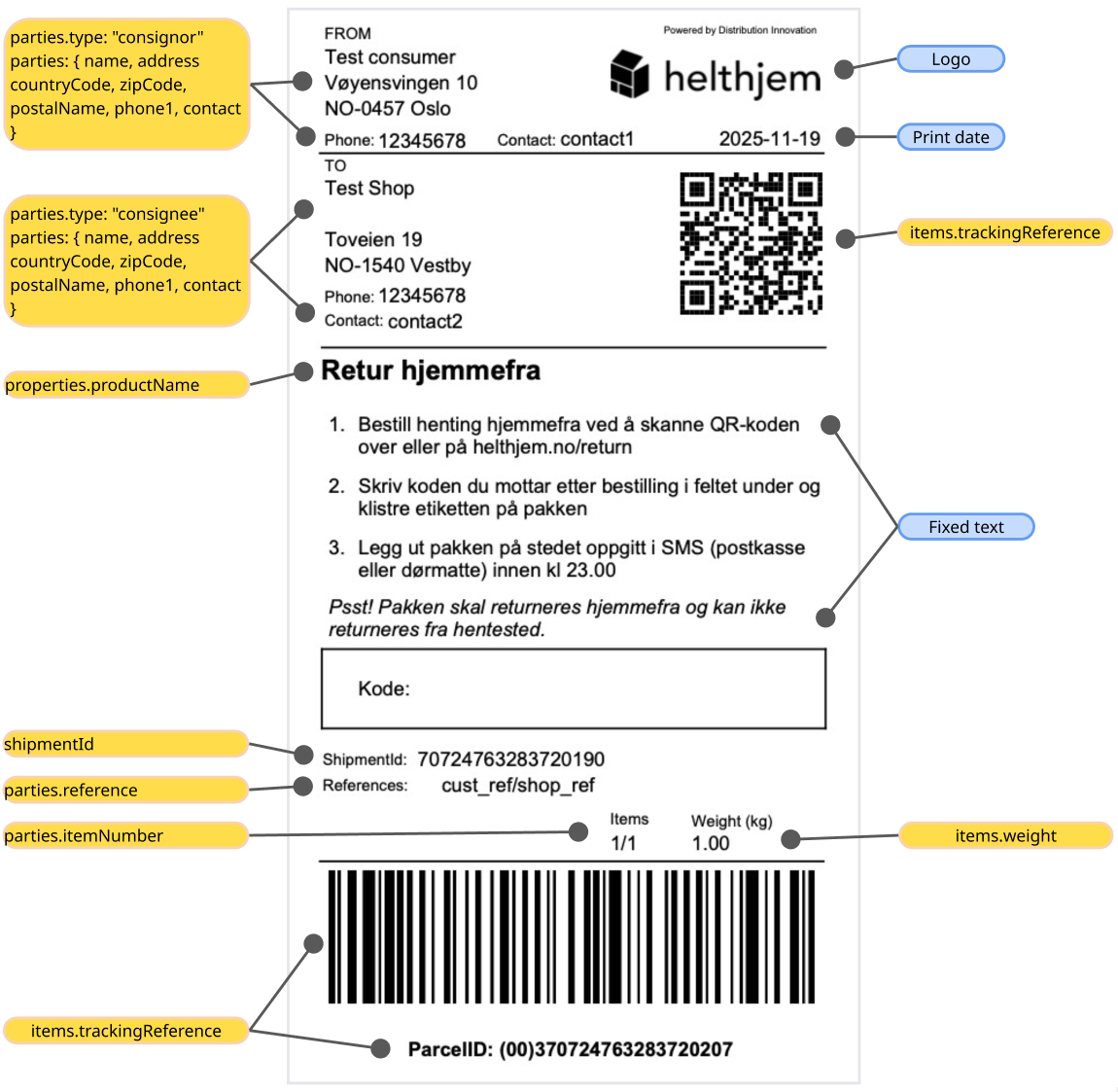

FreightProductId: 4 - Helthjem retur label
See the example below to understand where properties are mapped on this label type.
There is a QR code on the label.
The QR code contains the link to https://helthjem.no/retur/aktiver/{trackingReference}
The shop should have “passive return” active.
{
"shipmentId": "(401)70724763283720190",
"freightProductId": 4,
"parties": [
{
"type": "consignee",
"id": null,
"name": "Test Shop",
"countryCode": "NO",
"postalName": "Vestby",
"zipCode": "1540",
"address": "Toveien 19",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "test@gmail.com",
"reference": "cust_ref",
"contact": "contact2",
"coaddress": null
},
{
"type": "consignor",
"id": null,
"name": "Test consumer",
"countryCode": "NO",
"postalName": "Oslo",
"zipCode": "0457",
"address": "Vøyensvingen 10",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "test@gmail.com",
"reference": "shop_ref",
"contact": "contact1",
"coaddress": null
}
],
"items": [
{
"itemId": null,
"itemNumber": 1,
"trackingReference": "(00)370724763283720207",
"returnCode": null,
"linkedParcelType": null,
"linkedTrackingReference": null,
"weight": 1000,
"volume": null,
"length": 12,
"height": 12,
"width": 12,
"contentValue": null,
"externalSupplierId": null,
"contents": "test item",
"properties": {
"shortItemIdentifier": "...0207"
},
"articles": [],
"externalOrderId": null
}
],
"properties": {
"areaId": "59",
"freightProductName": "helthjem retur",
"mainCarNumber": "14",
"pickupZipString": "0556 OSLO",
"productName": "Retur hjemmefra",
"regionId": "189",
"routeAddress": "TOFTES GATE 21 B",
"routeDescription": "BUDSENTRAL RINGNES PARK",
"routeName": "22125",
"routeSeq": "1656",
"routeZipAndCity": null,
"routing": "14-0-x22125x1656",
"routingCode": null,
"routingDescription": "RINGNES PARK",
"routingDetailed": "14 - RINGNES PARK",
"shopName": "Testbutikken",
"transportCompanyId": "1",
"transportNetId": "223"
},
"additionalServices": [],
"orderId": 204586147
}FreightProductId: 56 - Helthjem Returpakke label
See the example below to understand where properties are mapped on this label type.
{
"shipmentId": "(401)70724763333123841",
"freightProductId": 56,
"parties": [
{
"type": "consignee",
"id": null,
"name": "Ola Nordmann",
"countryCode": "NO",
"postalName": "Oslo",
"zipCode": "0457",
"address": "Vøyensvingen 10A H0201",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "test@gmail.com",
"reference": "cust_ref",
"contact": "contact2",
"coaddress": null
},
{
"type": "consignor",
"id": null,
"name": "Test shop",
"countryCode": "NO",
"postalName": "Vestby",
"zipCode": "1540",
"address": "Toveien 19",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "",
"reference": "shop_ref",
"contact": "contact1",
"coaddress": null
},
{
"type": "servicePoint",
"id": "131228",
"name": "YX/7-ELEVEN 7545 VESTBY",
"countryCode": "NO",
"postalName": "VESTBY",
"zipCode": "1543",
"address": "KIRKEVEIEN 10",
"detailedAddress": null,
"phone1": null,
"phone2": null,
"email": null,
"reference": null,
"contact": null,
"coaddress": null
}
],
"items": [
{
"itemId": null,
"itemNumber": 1,
"trackingReference": "(00)370724763333123859",
"returnCode": null,
"linkedParcelType": null,
"linkedTrackingReference": null,
"weight": 1000,
"volume": null,
"length": 12,
"height": 12,
"width": 12,
"contentValue": null,
"externalSupplierId": null,
"contents": "test item",
"properties": {
"shortItemIdentifier": "...3859"
},
"articles": [],
"externalOrderId": null
}
],
"properties": {
"areaId": null,
"deliveryPointCarId": "5318",
"distributionDate": "20260110",
"freightProductName": "Helthjem Returpakke",
"mainCarNumber": "576",
"pickupZipString": "",
"productName": "Retur fra hentested",
"regionId": null,
"retailerId": "131228",
"routeAddress": "KIRKEV 10",
"routeDescription": null,
"routeName": "",
"routeSeq": "",
"routeZipAndCity": null,
"routing": "576-8",
"routingDescription": " ",
"routingDetailed": "576",
"shopName": "Testbutikken123",
"transportNetId": "85"
},
"additionalServices": [],
"orderId": 210767266

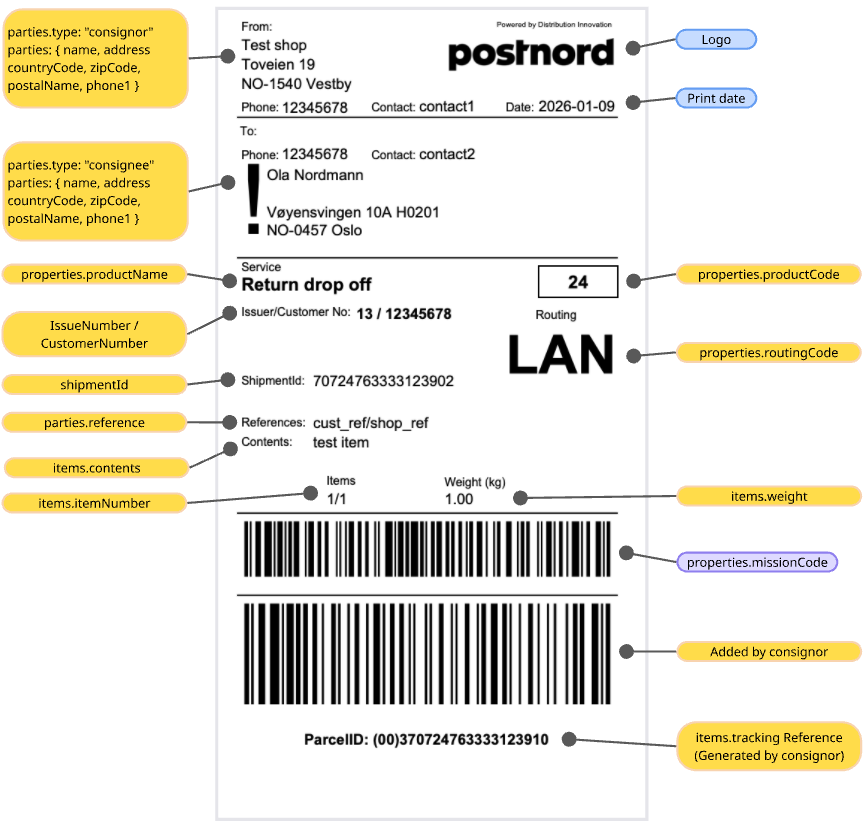

}FreightProductId: 20 - Retur via butikk (Postnord) label
See the example below to understand where properties are mapped on this label type.
This freight product contains a mission code.
{
"shipmentId": "(401)70724763333123902",
"freightProductId": 20,
"parties": [
{
"type": "consignee",
"id": "12345678",
"name": "Ola Nordmann",
"countryCode": "NO",
"postalName": "Oslo",
"zipCode": "0457",
"address": "Vøyensvingen 10A H0201",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "test@gmail.com",
"reference": "cust_ref",
"contact": "contact2",
"coaddress": null
},
{
"type": "consignor",
"id": "16",
"name": "Test shop",
"countryCode": "NO",
"postalName": "Vestby",
"zipCode": "1540",
"address": "Toveien 19",
"detailedAddress": null,
"phone1": "12345678",
"phone2": null,
"email": "",
"reference": "shop_ref",
"contact": "contact1",
"coaddress": null
}
],
"items": [
{
"itemId": null,
"itemNumber": 1,
"trackingReference": "(00)370724763333123910",
"returnCode": null,
"linkedParcelType": null,
"linkedTrackingReference": null,
"weight": 1000,
"volume": null,
"length": 12,
"height": 12,
"width": 12,
"contentValue": null,
"externalSupplierId": null,
"contents": "test item",
"properties": {},
"articles": [],
"externalOrderId": null
}
],
"properties": {
"customerNumber": "12345678",
"freightProductName": "Retur via butikk",
"issuerNumber": "13",
"missionCode":"4215781540 9013001234567824",
"productCode": "24",
"productName": "Return drop off",
"routingCode": "LAN",
"shopName": "Testbutikken123"
},
"additionalServices": [],
"orderId": 210767274
}Custom labels
When developing the smaller-sized shipping labels, while we generally maintain flexibility regarding formatting, adherence to the following guidelines is essential for successful integration.
Design & Content
-
Design Preference: The optimal approach is to design your labels to closely mirror the subsequent visual examples provided.
-
Data Source: All dynamic data displayed on the labels is sourced directly from the Booking API response.
-
Static Elements: The following elements are considered static and must be incorporated by your design:
-
Logos and Icons
-
Field Names
-
Date format/layout
-
-
Preferred Fonts: Please use Arial, Helvetica, or similar sans-serif fonts for maximum readability.
Collaboration & Process
-
Media Assets: Helthjem will provide all necessary media files (logos and icons). You can download these from Logos and icons.
-
Design Validation: To ensure quick validation and approval, maintain close contact with our Integration team at Helthjem throughout the custom label design process.
-
Production Timeline: A typical design process involves 2-3 iterations of the labels before final approval and deployment into a Production environment.
Custom label examples
Below are some examples of small sized custom labels that customers have created. All dynamic data used to create a label can be found in the booking response. Make sure that all data shown in examples are visible on your custom labels.
Freight Product 1 & 5 - Helthjem and Express
Ensure the label has the following parameters:
|
Id |
Description |
Parameter in response |
|---|---|---|
|
1 |
Consignor |
|
|
2 |
Consignee |
|
|
3 |
Route description |
|
|
4 |
Freight product name |
|
|
5 |
Shipment Id |
|
|
6 |
Tracking reference |
|
|
7 |
Consignor reference |
|
|
8 |
Logo |
Static element |
|
9 |
Print date |
Static element |
|
10 |
Route sequence |
|
|
11 |
Route name |
|
|
12 |
Route code |
|
|
13 |
Item Identifier |
|
|
14 |
Item weight |
|
|
15 |
Items number |
|
Example label
Freight Product 55 - Hentepakke
Ensure the label has the following parameters:
|
Id |
Description |
Parameter in response |
|---|---|---|
|
1 |
Consignor |
|
|
2 |
Service point |
|
|
3 |
Consignee |
|
|
4 |
Freight product name |
|
|
5 |
Tracking reference |
|
|
6 |
Logo |
Static element |
|
7 |
Service point Id |
|
|
8 |
Print Date |
Static element |
|
9 |
Routing code |
|
Example label
Freight Product 3 - Hent i butikk - Postnord
Ensure the label has the following parameters:
|
Id |
Description |
Parameter in response |
|---|---|---|
|
1 |
Consignor |
|
|
2 |
Service point |
|
|
3 |
Consignee |
|
|
4 |
Freight product name |
|
|
5 |
Issuer/Customer number |
|
|
6 |
Consignor reference |
|
|
7 |
Items number |
|
|
8 |
Mission code |
|
|
9 |
Tracking reference |
|
|
10 |
Logo |
Static element |
|
11 |
Print date |
Static element |
|
12 |
Product code |
|
|
13 |
Item weight |
|
Example label
Freight Product 4 - Helthjem return C2B
Ensure the label has the following parameters:
|
Id |
Description |
Parameter in response |
|---|---|---|
|
1 |
Consignor |
|
|
2 |
Consignee |
|
|
3 |
Freight product name |
|
|
4 |
QR code |
https://helthjem.no/retur/aktiver |
|
5 |
Tracking reference |
|
|
6 |
Consignor reference |
|
|
7 |
Contents |
|
|
8 |
Tracking reference |
|
|
9 |
Logo |
Static element |
|
10 |
Print date |
Static element |
|
11 |
Item identifier |
|
|
12 |
Item number |
|
|
13 |
Item weight |
|
Example label
